0.99 Inch High-Definition IPS TFT LCD Round Color Screen - 128x115 Resolution, GC9107 , Full-Color Display, Wide Viewing Angle, for Smart Wearables/DIY Electronic Projects/Industrial Instrument Panels

مكان المنشأ الصين
اسم العلامة التجارية HuaXin
إصدار الشهادات ISO14001/ISO9001/IATF16949
رقم الموديل ESHX099XZJR02
الحد الأدنى لكمية 1000
الأسعار 1.5-2usd
تفاصيل التغليف BLISTER+FOAM BOX+Bubble Bag+Inside Carton+Master Carton
وقت التسليم 6 أسابيع ~ 8 أسابيع
شروط الدفع ر/ر
القدرة على العرض 50 ألف شهريًا

اتصل بي للحصول على عينات مجانية وكوبونات.

ال WhatsApp:0086 18588475571

wechat: 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.

x
تفاصيل المنتج
عرض التكنولوجيا شاشة TFT مستديرة اسم مشاهدة عرض oled
مقاس 0.99 بوصة مستديرة | دقة 128*115
نوع العرض TFT واجهة spi
إبراز

0.99 inch IPS TFT LCD round display,128x115 resolution round color screen,GC9107 full-color TFT display

,

128x115 resolution round color screen

,

GC9107 full-color TFT display

اترك رسالة
منتوج وصف
0.99 Inch High-Definition IPS TFT LCD Round Color Screen
High-quality 0.99" IPS round TFT LCD with 128x115 resolution, GC9107 driver IC, full-color display, and wide viewing angle. Ideal for smart wearables, DIY electronic projects, and industrial instrument panels.
Key Features
  • 128x115 resolution for crisp display
  • GC9107 driver IC for stable performance
  • Wide viewing angle in all directions
  • Long lifespan (50,000+ hours)
  • RoHS certified for commercial use
  • 3.3V supply voltage
  • 450TYP luminance
  • 4 S-PI connection type
Product Specifications
Parameter Value
Part No. ESHX099XZJR02
Driver IC GC9107
Outline Dimensions (L x W x H) 26.71mm x 26.22mm x 1.86mm
Active Area (L x W) 24.36mm x 21.88mm
Viewing Angle All directions
Operation Temperature -20°C to +70°C
Storage Temperature -30°C to 80°C

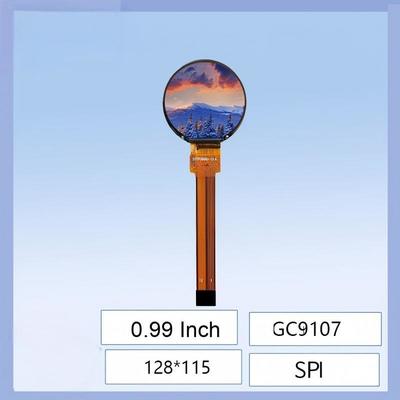

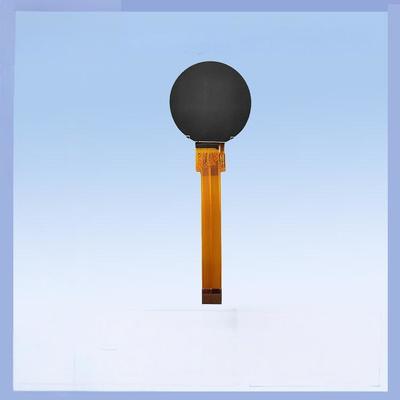

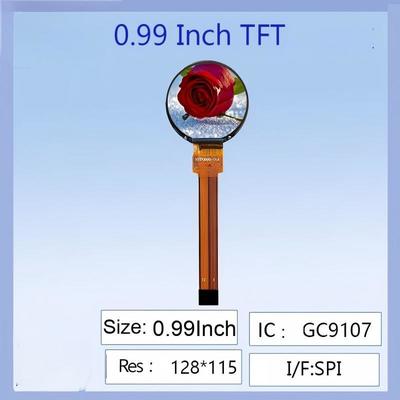

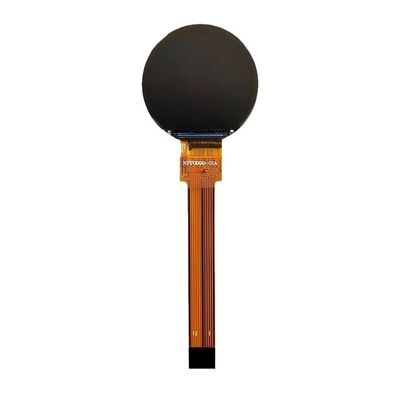

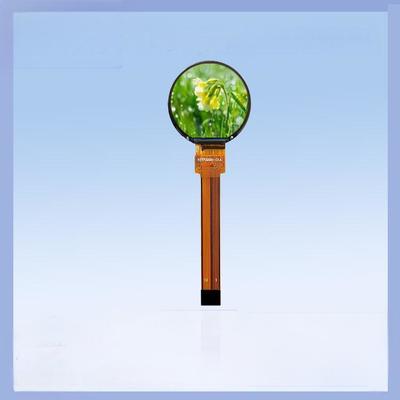

Product Images
0.99 Inch High-Definition IPS TFT LCD Round Color Screen - 128x115 Resolution, GC9107 , Full-Color Display, Wide Viewing Angle, for Smart Wearables/DIY Electronic Projects/Industrial Instrument Panels 0 0.99 Inch High-Definition IPS TFT LCD Round Color Screen - 128x115 Resolution, GC9107 , Full-Color Display, Wide Viewing Angle, for Smart Wearables/DIY Electronic Projects/Industrial Instrument Panels 1 0.99 Inch High-Definition IPS TFT LCD Round Color Screen - 128x115 Resolution, GC9107 , Full-Color Display, Wide Viewing Angle, for Smart Wearables/DIY Electronic Projects/Industrial Instrument Panels 2 0.99 Inch High-Definition IPS TFT LCD Round Color Screen - 128x115 Resolution, GC9107 , Full-Color Display, Wide Viewing Angle, for Smart Wearables/DIY Electronic Projects/Industrial Instrument Panels 3 0.99 Inch High-Definition IPS TFT LCD Round Color Screen - 128x115 Resolution, GC9107 , Full-Color Display, Wide Viewing Angle, for Smart Wearables/DIY Electronic Projects/Industrial Instrument Panels 4
Drawing & Pin Definition
0.99 Inch High-Definition IPS TFT LCD Round Color Screen - 128x115 Resolution, GC9107 , Full-Color Display, Wide Viewing Angle, for Smart Wearables/DIY Electronic Projects/Industrial Instrument Panels 5
Display Technology Comparison
OLED Advantages
  • Lighter and thinner than LCDs
  • High contrast ratio
  • Superior color saturation
  • Lower power consumption
OLED Disadvantages
  • Higher cost compared to LCD and TFT
  • Shorter operational lifetime than LCD and TFT
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
  • Location: Hubei, Enshi
  • Founded: 2009
  • Specialization: LCD, LCM, TFT, backlight, and OLED displays
  • Registered capital: 20 million
  • Current staff: 500+
  • R&D team: 10% of workforce
  • Quality control: 15% of workforce
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Automated processes for efficiency
  • 20+ years of LCD industry experience
  • Custom product design capabilities
Product Applications
  • Safety boxes & instruments
  • Locks & smart home devices
  • Transmitters & watches
  • Radios
  • Collimators & navigators
